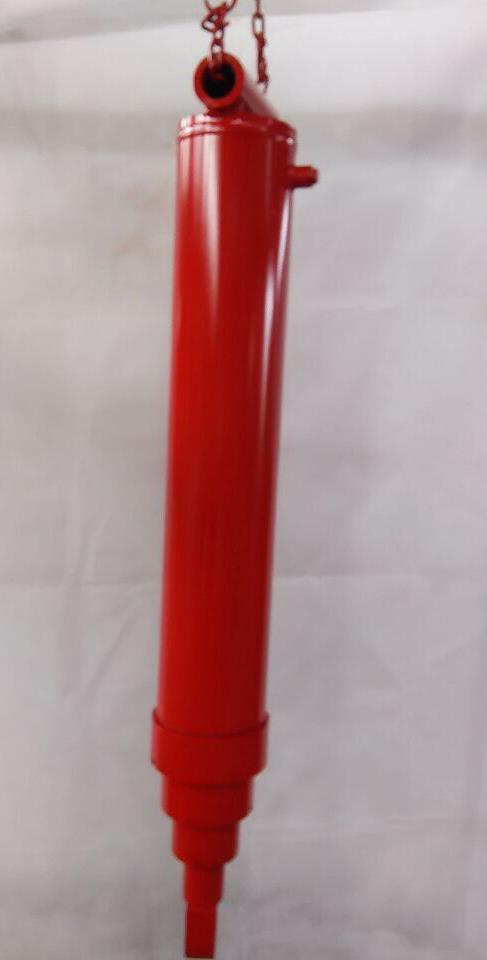

Multi-step Three Stages Hydraulic Cylinder For Mining Machinery

Telescopic cylinders are also referred to as telescoping cylinders and multi-stage telescopic cylinders.

We design, manufacture and fabricate hydraulic cylinders with precision and perfection.A partnership with LEFANG Hydraulic will ensure that your hydraulics are optimized for maximum performance and cost reduction.

Mining Machinery Multi-step hydraulic cylinder

Multi stage hydraulic ram
3 stage hydraulic cylinder
Three stage hydraulic cylinder

Standard or Nonstandard: Nonstandard

Structure: Piston Cylinder

Power: Hydraulic

Place of Origin: Shandong, China (Mainland)

Brand Name: LF

colour: yellow,orange,red,blue,black,green etc.

Min.Order Quantity: 10 Piece/Pieces

Supply Ability:  1000 Piece/Pieces per Month

Port:  Qingdao, China

The quality management system :ISO9001:2008.

Warranty: one year

Delivery time: 30-40 days.

Payment term: T/T, L/C,West Union.

Packaging & Shipping

1. Packing: Air cushion film+ Steel Pallet or Plywood Case

2. Shipping: By sea, By air, or By express.

Max.Cylinder Bore: 300mm

Max.Piston Rod Dia.:280mm

Max.Retract Length:3500mm

Max .Stroke: Single stage cylinder 6500mm

            Multi-stage cylinder 12000mm

Max.Working Pressure: 35Mpa

Min.Working Pressure: 10 Mpa

Working Pressure of Heavy-duty Cylinder: 40 Mpa
