Hydraulic Cylinder for Agricultural Harvester Equipment

Double-acting cylinder is a cylinder in which the working fluid acts alternately on both sides of the piston. In order to connect the piston in a double-acting cylinder to an external mechanism, such as a crank shaft, a hole must be provided in one end of the cylinder for the piston rod, and this is fitted with a gland or "stuffing box" to prevent escape of the working fluid. Double-acting cylinders are common in steam engines but unusual in other engine types. Many hydraulic and pneumatic cylinders use them where it is needed to produce a force in both directions.

Custom processing

If you are interested in our products,please kindly provide us the following information or designed drawing with your requirements for our engineers team reference:

   a. Bore size:

   b. Stroke length:

   c. Rod Diameter:

   d. Mounting Type:

   e. Retracted length:

   f. Paint color requirement.

Hydraulic Cylinder for Agricultural Harvester Equipment

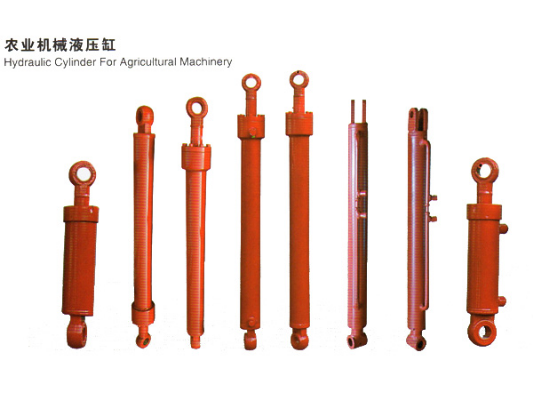

Double acting hydraulic cylinders are commonly used in agricultural machinery and farm equipment, such as tractor；harvester；hay baler； field mower; cultivator and so on.

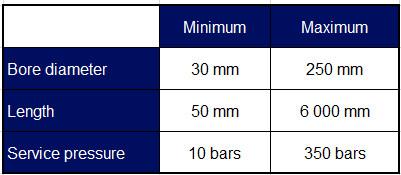

Features

Packaging & Shipping

1. Packing: Steel Pallet, Plywood Case, or As per customers' requirements.
2. Shipping: By sea, By air, or By express company.
