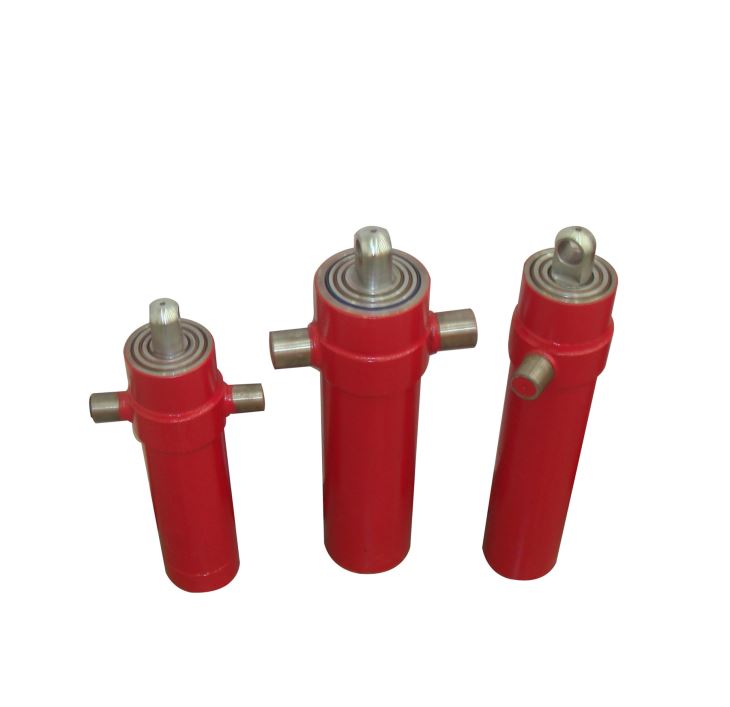

Telescopic Long Stroke Hydraulic Cylinders For Hoisting and Conveying Machinery
At LEFANG Hydraulic we have all the main essential components for hydraulic cylinders with exceptional attention and precision (from metal processing to assembly and painting). The cylinders are built using a large modern park of equipments where performed such processes as: turning, milling and welding. Painting is performed on the modern industrial paint equipment which is in accordance with requirements for protective coating. In production we use raw materials such as tubes, chrome plated bars and sealing components directly from industry leading suppliers

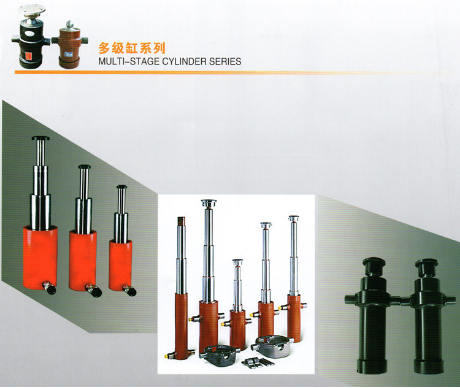

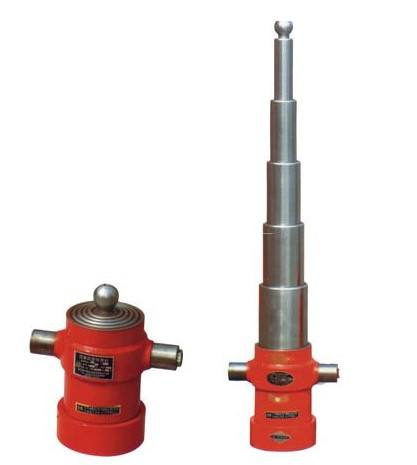

Multi-stage Telescopic Long Stroke Hydraulic Cylinders For Hoisting and Conveying Machinery
Heavy duty telescopic cylinders are usually powered by oil hydraulics, telescopic cylinders are also referred to as telescoping cylinders and multi-stage telescopic cylinders.
| Max.Cylinder Bore | 300mm |
| Max.Piston Rod Dia. | 280mm |
| Max.Retract Length | 3500mm |
| Max .Stroke | Single stage cylinder 6500mm |
| Multi-stage cylinder 12000mm | |
| Max.Working Pressure | 35Mpa |
| Min.Working Pressure | 10Mpa |
| Working Pressure of Heavy-duty Cylinder | 40Mpa |
| Material : |
| Piston: 45# steel |
| Tube: 20# steel |
| Piston rod: chrome plated 45# steel |
| Cylinder cap: 20# steel |
| Cylinder base: 20# steel |
| Seal ring: famous Chinese brand or international brand |
Standard or Nonstandard: Nonstandard
Structure: Piston Cylinder
Power: Hydraulic
Place of Origin: Shandong, China (Mainland)
Brand Name: LEFANG
colour: yellow,orange,red,blue,black,green etc.
Min.Order Quantity: 10 Piece/Pieces
Supply Ability: 1000 Piece/Pieces per Month
Port: Qingdao, China
The quality management system :ISO9001:2008.
Warranty: one year
Delivery time: 30-40 days.
Payment term: T/T, L/C,West Union.
