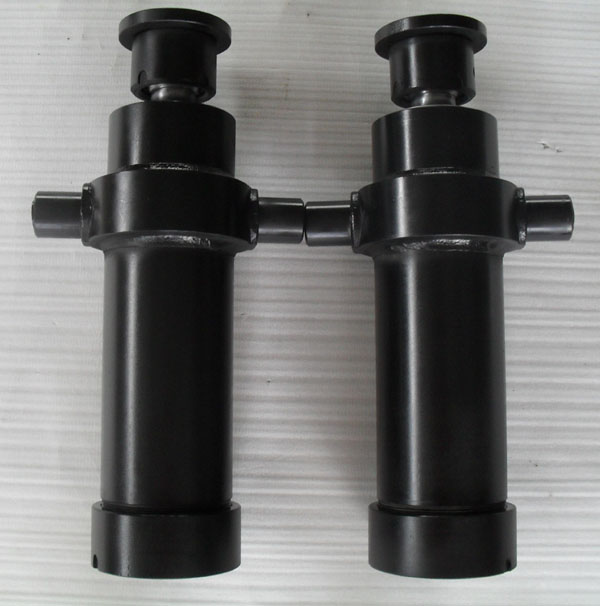

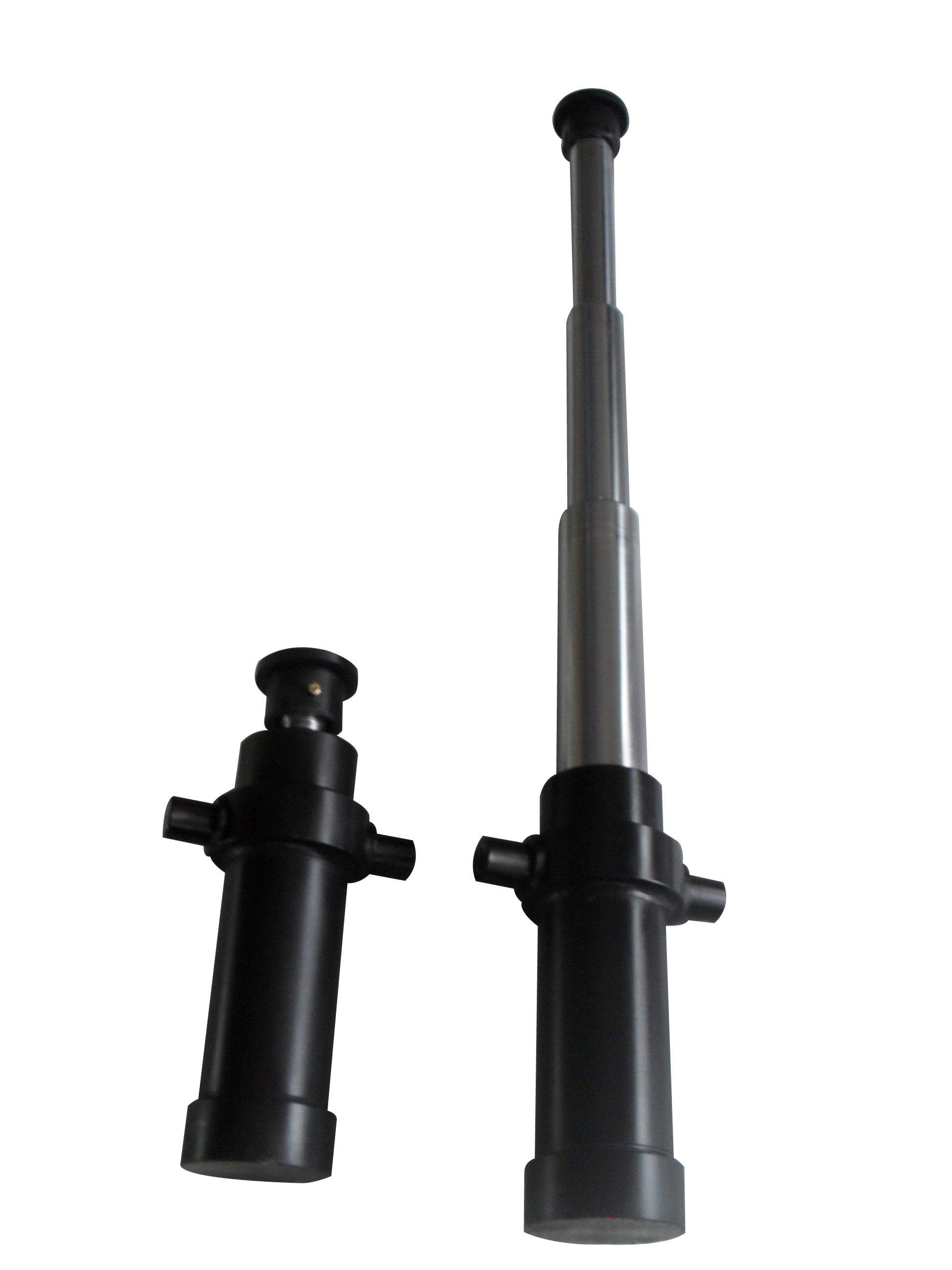

Single Acting Multi Stages Hydraulic Cylinders

Our design team has experience in design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.

Single acting multi stages hydraulic cylinders:

1.Superior Quality Chrome Plated & Polished Rod

2.Honed & Finished Steel Tube

3.Color could be as per requirements.

4.Piston: 45# steel

5.Tube: 20# steel

6.Piston rod: chrome plated 45# steel

7.Cylinder cap: 20# steel

8.Cylinder base: 20# steel

9.Seals: famous Chinese brand or international brand

10.Warranty: 12 months

11.Packing: Steel Pallet,  Plywood Case, or As per requirements.

Cylinder bore diameter:Φ90 Φ75 Φ60

Piston rod diameter: Φ55

Stroke: 306.9+362.9+309.9(mm)

Working pressure: 14-16 Mpa

Testing pressure: 25 Mpa

Connection: hinged shaft

Painting: black
