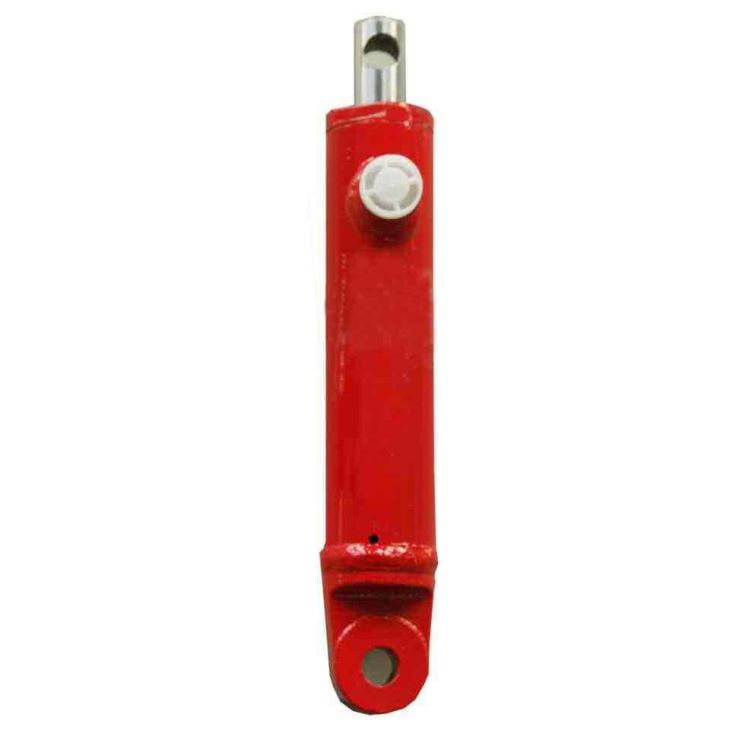

Single acting non-standard hydraulic cylinder design
Product Details

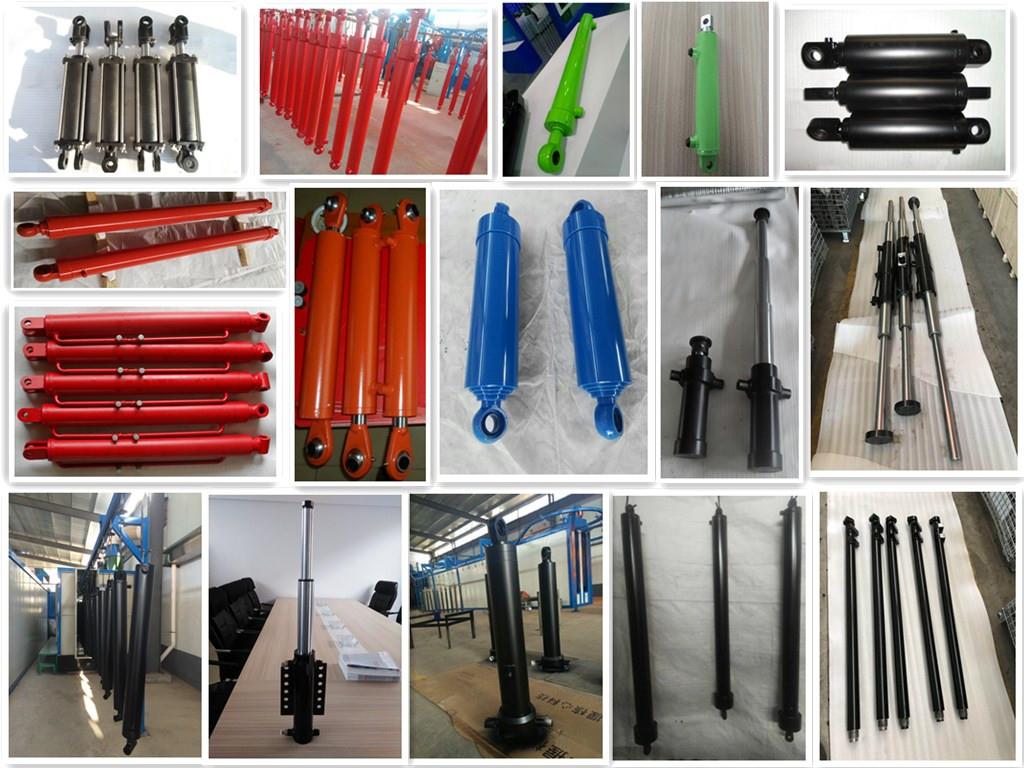

LEFANG Hydraulic specializes in hydraulic cylinders for various types of equipment.Our range of products includes double-acting, single-acting, multi-stage telescopic and tie-rod customized cylinders according to our customer's requests.
Product Description:
1.Single-acting
2.Superior Quality Chrome Plated & Polished Rod
3.Honed & Finished Steel Tube
4.Top Quality Seals
5.Color could be as per requirements.
| Material : |
| Piston: 45# steel |
| Tube: 20# steel |
| Piston rod: chrome plated 45# steel |
| Cylinder cap: 20# steel |
| Cylinder base: 20# steel |
| Seal ring: famous Chinese brand or international brand |
| PARAMETER | |
| Max.Cylinder Bore | 300mm |
| Max.Piston Rod Dia. | 280mm |
| Max.Retract Length | 3500mm |
| Max .Stroke | Single stage cylinder 6500mm |
| Multi-stage cylinder 12000mm | |
| Max.Working Pressure | 35Mpa |
| Min.Working Pressure | 10Mpa |
| Working Pressure of Heavy-duty Cylinder | 40Mpa |
