HSG Hinged Shaft Connection Standard Welded Hydraulic Cylinders hydraulic ram
LEFANG Hydraulic specializes in hydraulic cylinders for various types of equipment.Our range of products includes both standard cylinders (double-acting, single-acting and telescopic) and custom cylinders according to our customer’s requests. LEFANG Hydraulic manufacturing facilities operate under the ISO 9001:2008 quality certificate. We pride ourselves in only using high-quality materials and innovative technologies in order to produce the finest heavy-duty hydraulic cylinders. Our manufacturing and design techniques provide product reliability in extreme stress and conditions. Therefore our products are perfectly suited for severe weather conditions from tundra to tropics. All products include at least a one-year product warranty. It is our purpose to satisfy any rigorous hydraulic demands.
Material:
Material :
Piston: 45# steel
Tube: 20# steel
Piston rod: chrome plated 45# steel
Cylinder cap: 20# steel
Cylinder base: 20# steel
Seal ring: famous Chinese brand or international brand
| PARAMETER | |
| Max.Cylinder Bore | 300mm |
| Max.Piston Rod Dia. | 280mm |
| Max.Retract Length | 3500mm |
| Max .Stroke | Single stage cylinder 6500mm |
| Multi-stage cylinder 12000mm | |
| Max.Working Pressure | 35Mpa |
| Min.Working Pressure | 10Mpa |
| Working Pressure of Heavy-duty Cylinder | 40Mpa |
Structure: Piston Cylinder
Power: Hydraulic
Place of Origin: Shandong, China (Mainland)
Brand Name: LEFANG
colour: yellow,orange,red,blue,black,green etc.
Min.Order Quantity: 10 Piece/Pieces
Supply Ability: 1000 Piece/Pieces per Month
Port: Qingdao, China

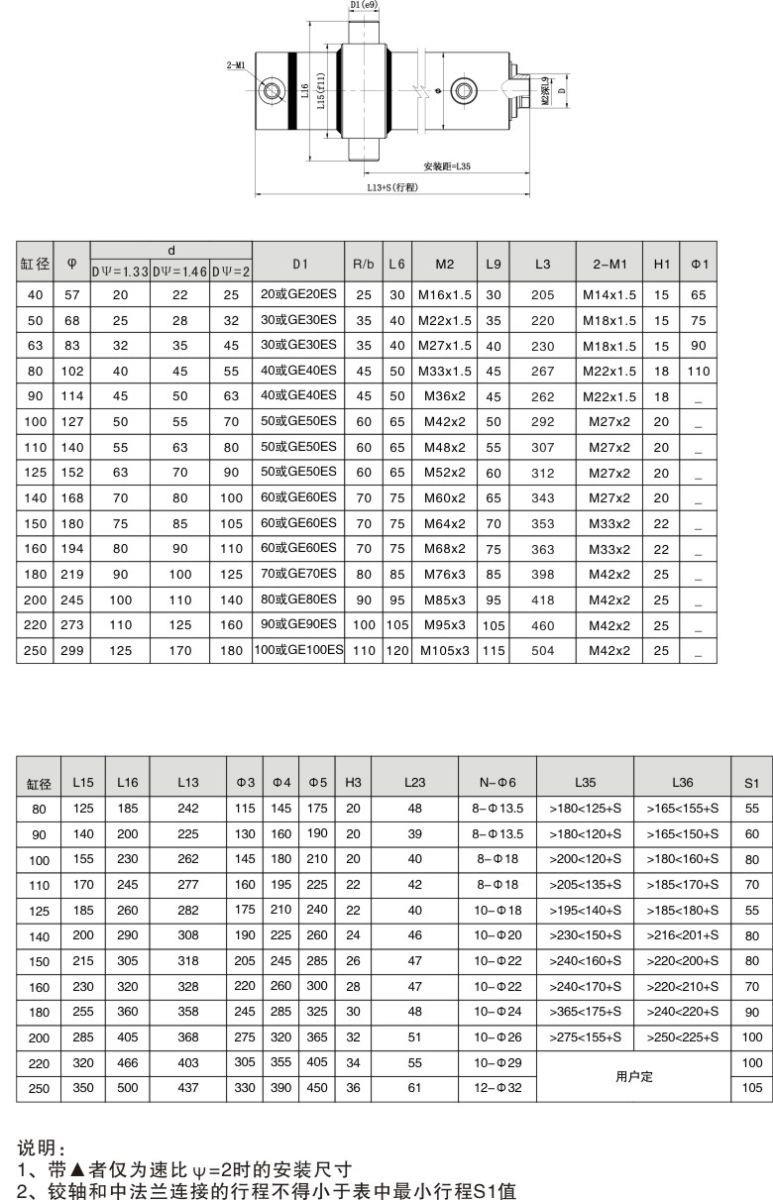

HSG hydraulic cylinders with hinged shaft connection.
