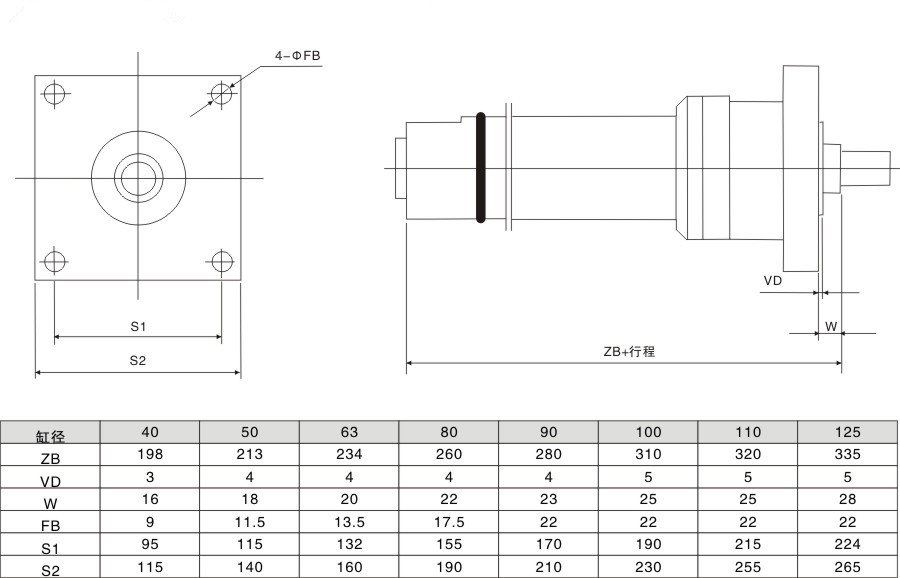

YHG1 Flange Connection Standard Welded Hydraulic Piston Cylinders
Lefang specialize in producing and designing hydraulic cylinders of all sizes and types . LEFANG has been serving it’s customers for 15 years. LEFANG is well known for providing good service and reliable product, and it will continue to commit to quality, quick response, professional design, on time delivery, and competitive prices.
Material:
| Material : |
| Piston: 45# steel |
| Tube: 20# steel |
| Piston rod: chrome plated 45# steel |
| Cylinder cap: 20# steel |
| Cylinder base: 20# steel |
| Seal ring: famous Chinese brand or international brand |
| PARAMETER | |
| Max.Cylinder Bore | 300mm |
| Max.Piston Rod Dia. | 280mm |
| Max.Retract Length | 3500mm |
| Max .Stroke | Single stage cylinder 6500mm |
| Multi-stage cylinder 12000mm | |
| Max.Working Pressure | 35Mpa |
| Min.Working Pressure | 10Mpa |
| Working Pressure of Heavy-duty Cylinder | 40Mpa |
Quality Control:
1.All specification is designed by professional engineers.
2.All material is processed by skilled workers and advanced CNC lathe.
3.All cylinders are 100% tested before package to ensure every cylinder is qualified for its purpose.
4.Package is air cushion film for each cylinder, and wooden case or steel pallet for all cylinders to ensure goods can arrive at customer safely.
5.One year warranty and long time track service is offered to solve any problems of after sale.
YHG1 Flange Connection Standard Welded Hydraulic Piston Cylinders
Structure: Piston Cylinder
Power: Hydraulic
Place of Origin: Shandong, China (Mainland)
Brand Name: LF
Colour: yellow,orange,red,blue,black,green etc.
Min.Order Quantity: 10 Piece/Pieces
Supply Ability: 1000 Piece/Pieces per Month
Port: Qingdao, China
Packaging & Shipping
1. Packing: Air cushion film+ Steel Pallet or Plywood Case
2. Shipping: By sea, By air, or By express.
