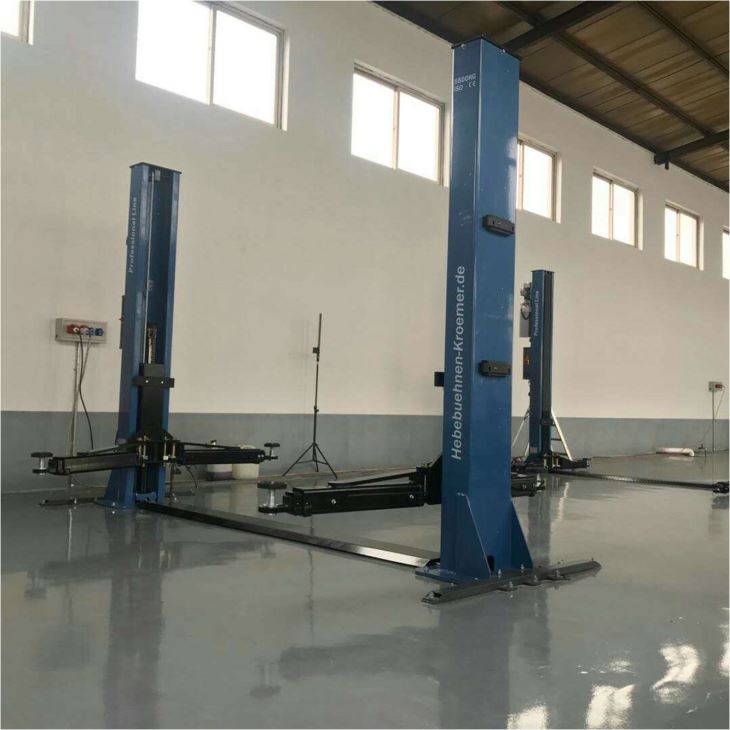

TP50 Capacity 5500kg 2 Post Vehicle Lift With Bottom Bar- Electrical
This floor plate two posts lift is composed of posts, carriages, lifting arms, cylinders and motor unit, etc.
It is driven by an electro-hydraulic system. The gear pump delivers hydraulic oil to oil cylinders and pushes upwards its piston. The piston drives the chain to raise the carriage and the lifting arms. During lifting process,the safety latch will automatically and firmly bite with the safety teeth block in the posts. Therefore, no slipping will happen in case the hydraulic system breaks down.

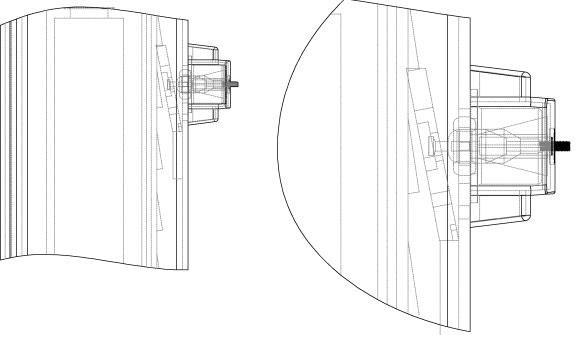

Safety structure
Technical Data
Model type TP50(TP51,TP52,TP53,TP54,TP55)
Type TWO POST
Capacity 5500kg
Lifting time <55s
Descent time >20s
Max. lifting height 1900mm
Min. lifting height 500mm
Overall width 4028mm
Overall length 3300mm
Power supply 3/N/PE~400V/230V, 50/Hz, 16A
Power 2.2 KW
Noise <=70dB
Installation place Indoors
Weight 1000kg
Safety catch type solenoid
